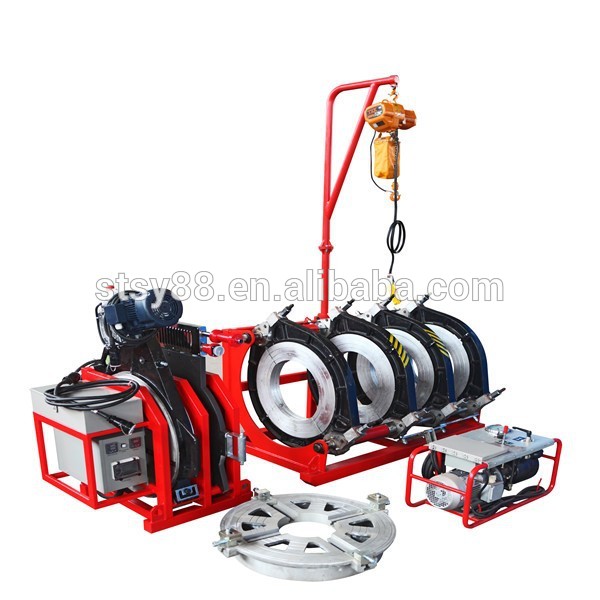

Application and Features:
- Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
- Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, and optional parts.
- Removable PTFE coated heating plate with high accurate temperature control system.
- Electric planning tool with safety limit switch enables to start it only when it is locked in operation position.
- Made of lightweight and high strength material.
- Low starting pressure and high reliable seal structure.
- Changeable welding position brings more convenience while welding various fittings.
- Separate two-channel timer records times in soaking and cooling phases.
- High-accurate and shockproof pressure meter indicates clearer readings.
- Labor saving and high efficient crane is available to lift planing tool and heating plate.
Optional parts:
- Stub end device for short flange stub
- Data logger.
- Trolley
Technical Parameters:
| Model | SHD 800/450 |
| Pipe size(mm) | 450,500,560,630,710,800 |
| Heating plate max. temp. | 270â |
| Temp. deviation in surface(170~250â) | ≤±7â |
| Pressure adjustable Ranges | 0-16Mpa |
| Working voltage | 220Vă50Hz |
| Heating plate power | 12.5KW |
| Planing tool power | 2.2KW |
| Hydraulic unit power | 3KW |
| Crane power | 0.5KW |
