Application and Features:
- Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.

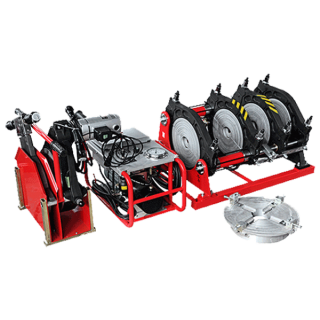

- Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
- Removable PTFE coated heating plate with high accurate temperature control system;
- Electrical planing tool.
- Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
- Low starting pressure ensures reliable welding quality of small pipes.
- Changeable welding position enables to weld various fittings more easily.
- High accurate and shockproof pressure meter indicates clearer readings.
- Separate two-channel timer records time in soaking and cooling phases.
Optional parts:
- Stub end device for short flange.
- Data logger.
- Trolly
Technical Parameters:
| Model | SHD 315/90 | |
| Pipe size (mm) | 90,110,125,140,160,180,200,225,250,280,315 | |
| Heating plate max. temp. | 270℃ | |
| Temp. deviation in surface (170~250℃) | ≤±7℃ | |
| Pressure adjustable Ranges | 0-6.3Mpa | |
| Working voltage | 220V、50Hz | |
| Heating plate power | 3.5KW | |
| Planing tool power | 1.1KW | |
| Hydraulic unit power | 0.75KW | |
| Total power | 5.35KW | |
| Weight | 216Kg | |
| Packing | Cases | 3PlywoodCases |
| Volume | 1.07CBM | |
